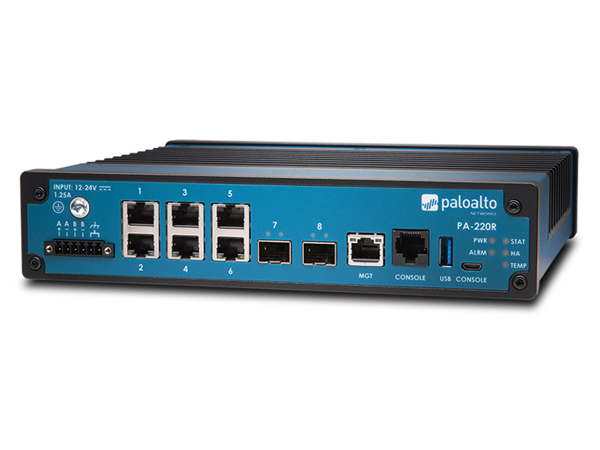

PaloAlto PA-220R
Mô tả
The PA-220R is a next-generation firewall appliance in a ruggedized form factor, providing rock-solid network security for severe environments, such as utility substations, power plants, manufacturing plants, oil and gas facilities, building management systems and healthcare networks.
The controlling element of the Palo Alto Networks® PA-220R is PAN-OS® security operating system, which natively classifies all traffic, inclusive of applications, threats and content, and then ties that traffic to the user, regardless of location or device type. The application, content and user – in other words, the elements that run your business – are then used as the basis of your security policies, resulting in an improved security posture and a reduction in incident response time.
Specification
| STT | Tính năng | Palo Alto PA-220R |
| 1 | Thông số kỹ thuật | |
| Firewall Throughput | 500/560 Mbps | |
| Threat Prevention throughput | 150/260 Mbps | |
| IPSec VPN throughput | 500 Mbps | |
| New sessions per second | 4200 | |
| Maximum sessions | 64000 | |
| Interfaces supported | (6) 10/100/1000, (2) SFP | |
| Management I/O | (1) 10/100/100 out-of-band management (1) RJ-45 console (1) USB, (1) Micro USB console |
|
| Size | 2.0” H x 8.66” D x 9.25” W Flexible mounting options including DIN rail, rack and wall mount |
|
| Power Supply (Avg/Max Power Consumption) | Dual DC power feeds (13 W/16 W) | |
| Redundant Power Supply | None | |
| Storage capacity | 32GB EMMC | |
| Hot-swappable fans | No | |
| Max BTU/hr | 55 | |
| Input Voltage (Input Frequency) | 12–48VDC 1.4A | |
| Max Current Consumption | Firewall – 1.4A @ 12VDC Max inrush current 4.9A @ 12VDC |
|
| Weight (Stand-Alone Device/ As Shipped) | 4.5 lbs / 6.0 lbs | |
| Safety | TUV CB report and TUV NRTL | |
| EMI | FCC Class A, CE Class A, VCCI Class A | |
| Certifications | IEC 61850-3 and IEEE 1613 environmental and testing standards. For more certifications, see: https://www.paloaltonetworks.com/company/certifications.html |
|
| Enviroment | Operating temperature: -40° to 158° F, -40° to 70° C Non-operating temperature: -40° to 167° F, -40° to 75° C Passive cooling |
|
| 2 | Network Feature | |
| Interface mode | L2, L3, tap, virtual wire (transparent mode) | |
| Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) Multicast: PIM-SM, PIM-SSM, IGMP v1, v2 and v3 |
|
| IPv6 | L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire and SSL decryption SLAAC |
|
| IPSec VPN | Key exchange: manual key, IKEv1 and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3DES, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
|
| VLANs | 802.1Q VLAN tags per device/per interface: 4,094/4,094 | |
| Network Address Translation | NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation) NAT64, NPTv6 Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription |
|
| High Availability | Modes: active/active, active/passive Failure detection: path monitoring, interface monitoring |
