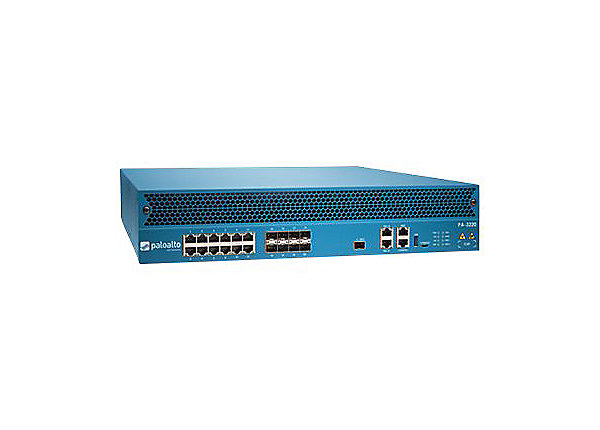

PaloAlto PA-3220
Mô tả
The Palo Alto Networks® PA-3200 Series next-generation firewalls are designed for data center and internet gateway deployments. This series is comprised of the PA-3220, PA-3250, and PA-3260 firewalls. These models provide flexibility in performance and redundancy to help you meet your deployment requirements. All models in this series provide next-generation security features to help you secure your organization through advanced visibility and control of applications, users, and content.
Specification
| STT | Tính Năng | Palo Alto PA-3220 |
| 1 | Thông số kỹ thuật | |
| Firewall Throughput | 5 Gbps | |
| Threat Prevention throughput | 2.4 Gbps | |
| IPSec VPN throughput | 2.7 Gbps | |
| New sessions per second | 57000 | |
| Maximum sessions | 1000000 | |
| Interfaces supported | (12) 10/100/1000 (4) 1G SFP (4) 1G/10G SFP/SFP+ |
|
| Management I/O | (1) 10/100/1000 out-of-band management port (2) 10/100/1000 high availability (1) 10G SFP+ high availability (1) RJ-45 console port (1) Micro USB |
|
| Size | 2U, 19″ standard rack (3.5″ H x 20.53″ D x 17.34″ W ) | |
| Power Supply (Avg/Max Power Consumption) | Redundant 650-watt AC or DC (180/240) | |
| Redundant Power Supply | Yes | |
| Storage capacity | 240 GB SSD | |
| Hot-swappable fans | Yes | |
| Max BTU/hr | 819 | |
| Input Voltage (Input Frequency) | AC: 100–240VAC (50–60 Hz) DC: -48V @ 4.7A, -60V @ 3.8A |
|
| Max Current Consumption | AC: 2.3A @ 100VAC, 1.0A @ 240VAC DC:-48V @ 4.7A, -60V @ 3.8A |
|
| Mean Time Between Failure (MTBF) | 14 Years | |
| Weight (Stand-Alone Device/ As Shipped) | 29 lbs / 41.5 lbs | |
| Safety | TUV CB report and TUV NRTL | |
| EMI | FCC Class A, CE Class A, VCCI Class A | |
| Certifications | See https://www.paloaltonetworks.com/company/certifications.html | |
| Enviroment | Operating temperature: 32° to 122° F, 0° to 50° C Non-operating temperature: -4° to 158° F, -20° to 70° C Humidity tolerance: 10% to 90% Maximum altitude: 10,000ft / 3,048m |
|
| Airflow | Front to back | |
| 2 | Network Feature | |
| Interface mode | L2, L3, tap, virtual wire (transparent mode) | |
| Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-point protocol over Ethernet (PPPoE) Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 Bidirectional Forwarding Detection (BFD) |
|
| IPv6 | L2, L3,tap, virtual Wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL decryption SLAAC |
|
| IPSec VPN | Key exchange: manual key, IKEv1 and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3DES, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
|
| VLANs | 802.1Q VLAN tags per device/per interface: 4,094/4,094 | |
| Network Address Translation | NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation) NAT64, NPTv6 Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription |
|
| High Availability | Modes: active/active, active/passive Failure detection: path monitoring, interface monitoring |
