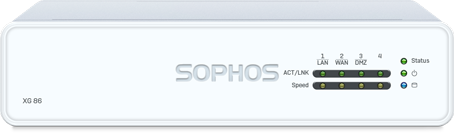

Sophos XG 86/86W

Danh mục: Thương hiệu:

Mô tả

Đánh giá của chúng tôi

Đánh giá dựa trên nhận định của chuyên gia




5



  • Hiệu năng
    5 / 10



Sophos XG Firewall provides comprehensive next-generation firewall protection that exposes hidden risks, blocks unknown threats, and automatically responds to incidents.

Exposes hidden risks

Sophos XG Firewall provides unprecedented visibility into top risk users, unknown apps, advanced threats, suspicious payloads and much more. You also get rich on-box reporting included at no extra charge and the option to add Sophos iView for centralized reporting across multiple firewalls.

Blocks unknown threats

Sophos XG Firewall provides all the latest advanced technology you need to protect your network from ransomware and advanced threats including top-rated IPS, Advanced Threat Protection, Cloud Sandboxing, Dual AV, Web and App Control, Email Protection and a fullfeatured Web Application Firewall. And it’s easy to setup and manage.

Automatically responds to incidents

XG Firewall is the only network security solution that is able to fully identify the source of an infection on your network and automatically limit access to other network resources in response. This is made possible with our unique Sophos Security Heartbeat™ that shares telemetry and health status between Sophos endpoints and your firewall.

Potent, powerful… fast

We’ve engineered XG Firewall to deliver outstanding performance and security efficiency for the best return on your investment. Our appliances are built using Intel multi-core technology, solid-state drives, and accelerated in-memory content scanning. In addition, Sophos FastPath packet optimization technology ensures you’ll always get maximum throughput.

Simply manage multiple firewalls

Sophos Firewall Manager provides a single console for the complete central management of multiple XG Firewalls. And if you also want to consolidate reporting across multiple XG, SG, and Cyberoam appliances then with Sophos iView, you can.

Security features you can’t get anywhere else

XG Firewall includes a number of innovations that not only make your job a lot easier, but also ensure your network is more secure.

Synchronized Security

An industry first, Synchronized Security links your endpoints and your firewall to enable unique insights and coordination. Security Heartbeat™ relays Endpoint health status and enables your firewall to immediately identify and respond to a compromised system on your network. The firewall can isolate systems until they can be investigated and cleaned up. Another Synchronized Security feature, Synchronized App Control, also enables the firewall to query the endpoint to determine the source of unknown traffic on the network.

Unified Firewall Rules

User identity takes enforcement to a whole new layer with our identity based policy technology enabling user level controls over applications, bandwidth and other network resources regardless of IP-address, location, network or device. It literally takes firewall policy to a whole new layer.

A Firewall That Thinks Like You

Pre-defined policy templates let you protect common applications like Microsoft Exchange or SharePoint quickly and easily. Simply select them from a list, provide some basic information and the template takes care of the rest. It sets all the inbound/ outbound firewall rules and security settings for you automatically – displaying the final policy in a statement in plain English.

Insights into Top Risk Users

The Sophos User Threat Quotient (UTQ) indicator is a unique feature which provides actionable intelligence on user behavior. Our firewall correlates each user’s surfing habits and activity with advanced threat triggers and history to identify users with risk-prone behavior.

Flexible deployment, no compromise

Unlike our competitors, whether you choose hardware, software, virtual or Microsoft Azure, we don’t make you compromise – every feature is available on every model and form- factor.

Performance XG 86(w)
Firewall throughtput 3 Gbps
Firewall IMIX 800 Mbps
VPN throughput 225 Mbps
IPS throughtput 580 Mbps
NGFW (IPS + App Ctrl) max. 310 Mbps
Antivirus throughtput (proxy) 360 Mbps
Concurrent connections 3,200,000
New connections/sec 15,000
Maximum licensed users unrestricted

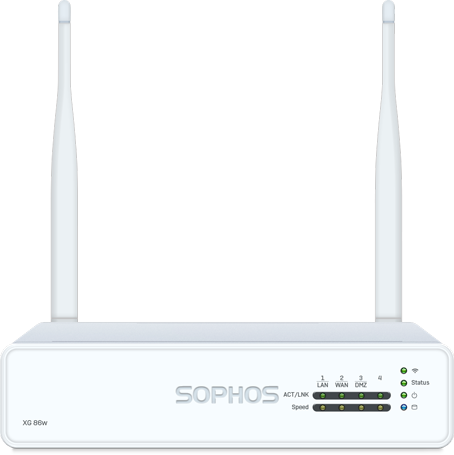

Wireless Specification (XG 86w only)
No. of antennas 2 external
MIMO capabilities 2 x 2:2
Wireless interface 802.11a/b/g/n/ac (2.4 GHz / 5 GHz)

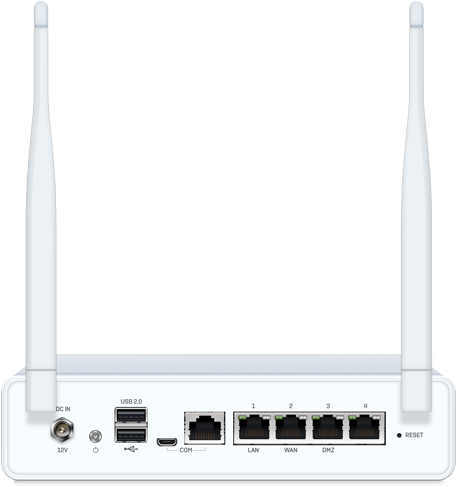

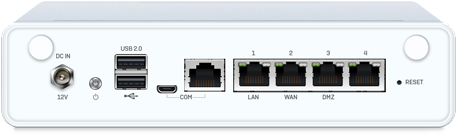

Physical interfaces
Storage 16 GB eMMC
Ethernet interfaces (fixed) 4 GbE copper
I/O ports (rear) 2 x USB 2.0
1 x Micro-USB
1 x COM (RJ45)
Power supply External auto ranging DC: 12V
100-240VAC, 24W@50-60 Hz
Physical specifications
Mounting Rackmount kit available
(to be ordered separately)
Dimensions Width x Depth x Height 190 x 117 x 43 mm
7.48 x 4.61 x 1.69 inches
Weight 0.75 kg / 1.65 lbs (unpacked)
1.9 kg / 4.19 lbs (packed)
(w model minimally higher)
Environment
Power consumption 12W, 40.94 BTU/hr (idle)
20.4W, 69.6 BTU/hr (full load)
Operating temperature 0-40 C (operating)
-20 to +80 C (storage)
Humidity 10%-90%, non-condensing
Product Certifications
Certifications CB, CE, FCC, ISED (IC), VCCI, RCM, UL,
CCC, BIS, Anatel, KC (w-model only)

Subscriptions

    FullGuard Plus (included in TotalProtect Plus)
      FullGuard (included in TotalProtect)
    EnterpriseGuard Plus
(included in EnterpriseProtect Plus)

      EnterpriseGuard
(included in EnterpriseProtect)

Service Base Firewall Sandstorm
Protection
Network
Protection
Web Protection Email Protection Webserver
Protection
General Management (incl. HA)   ●
Firewall, Networking and Routing
Base Traffic Shaping and Quotas
Secure Wireless
Authentication
Self-Serve User Portal
Base VPN Options
Sophos Connect IPSec Client
Sandstorm Protection
Intrusion Prevention (IPS)
ATP and Security Heartbeat™
Remote Ethernet Device (RED) VPN
Clientless VPN
Synchronized Application Control
Web Protection and Control
Application Protection and Control
Cloud Application Visibility
Web and App Traffic Shaping
Email Protection and Control
Email Quarantine Management
Email Encryption and DLP
Web Application Firewall Protection
Logging and Reporting

Specs

System Performance


Firewall throughput
3 Gbps

Firewall IMIX
800 Mbps

Antivirus Throughput
360 Mbps

Concurrent connections
3,200,000

New connections/sec
15,000

IPS throughput
580 Mbps

NGFW Throughput
310 Mbps

IPSec VPN throughput
225 Mbps

Physical interfaces


GE RJ45 Ports
4 GbE cooper

GE RJ45 WAN Ports
4 GbE cooper

GE SFP Slots
No

I/O ports
2 x USB 2.0 | 1 x Micro-USB | 1x COM (RJ45)

Storage
8 GB eMMC

Dimensions & Enviroment


Mounting
Rackmount kit available (to be ordered separately)

Dimensions Width x Depth x Height (inches)
748 x 4.61 x 1.69 inches

Dimensions Height x Width x Length (mm)
190 x 117 x 43 mm

Weight
0.75 kg / 1.65 lbs (unpacked) | 1.9 kg / 4.19 lbs (packed) | (w model minimally higher)

Power supply
External auto ranging DC: 12V, 100-240VAC, 24W@50-60 Hz

Power Consumption
12W, 40.94 BTU/hr (idle) 20.4W, 69.6 BTU/hr (full load)

Operating Temperature
0-40°C (operating) -20 to +80°C (storage)

Humidity
10%-90%, non-condensing

Wireless Specification (XG Wireless only)


No. of antennas
2 external

MIMO capabilities
2 x 2:2

Wireless interface
802.11a/b/g/n/ac (2.4 GHz / 5 GHz)

Product Certifications


Certifications
CB, CE, FCC, ISED (IC), VCCI, RCM, UL, CCC, BIS, Anatel, KC (w-model only)
