Sophos XGS 136/136(w)
Mô tả
Xstream Protection
Sophos Firewall’s Xstream architecture protects your network from the latest threats while accelerating your important SaaS, SD-WAN, and cloud application traffic.
- TLS 1.3 Decryption
Remove an enormous blind spot with intelligent TLS inspection that’s fast and effective, supporting the latest standards with extensive exceptions and point-and-click policy tools to make your job easy. - Deep Packet Inspection
Stop the latest ransomware and breaches with high-performance streaming deep packet inspection, including next-gen IPS, web protection, and app control, as well as deep learning and sandboxing powered by SophosLabs Intelix. - Application Acceleration
Accelerate your SaaS, SD-WAN, and cloud traffic such as VoIP, video, and other trusted applications automatically or via your own policies, putting them on the Xstream FastPath to optimize performance.
Powerful Performance
The XGS Series delivers Xstream performance at every price point to power the protection you need for today’s diverse, distributed, and encrypted networks.
- Powered by Xstream
Accelerate and offload your important SaaS, SD-WAN, and cloud traffic at the hardware level, while adding performance headroom for TLS and deep packet inspection with integrated Xstream Flow Processors. - High-Speed Connectivity
Customize your firewall’s already versatile connectivity options with an extensive range of add-on modules for high-speed copper, fiber, Power over Ethernet (PoE), and Wi-Fi. - Purpose-Built Performance
Rest assured, your firewall is purpose-built from the core to handle the most demanding workloads with a dual processor architecture, generous memory provisioning, and high-performance solid-state storage.
Specs
System Performance
|
Firewall throughput |
≥ 11,500 Mbps |
|
Firewall Latency |
8 µs |
|
Firewall IMIX |
≥ 4,700 Mbps |
|
Concurrent connections |
≥ 6,400,000 |
|
New connections/sec |
≥ 74,500 |
|
IPS throughput |
≥ 3,300 Mbps |
|
NGFW Throughput |
3,000 Mbps |
|
Threat Protection Throughput |
≥ 1,000 Mbps |
|
IPSec VPN throughput |
2,500 Mbps |
|
Xstream SSL/TLS Inspection |
≥ 950 Mbps |
|
Xstream SSL/TLS Concurrent connections |
≥ 18,432 |

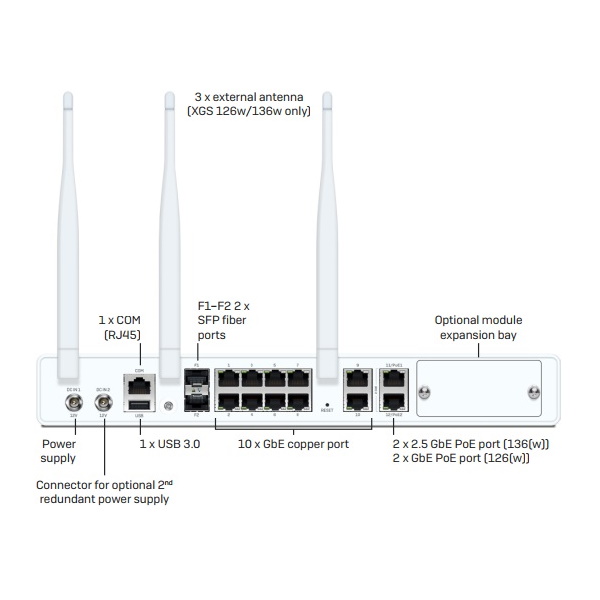

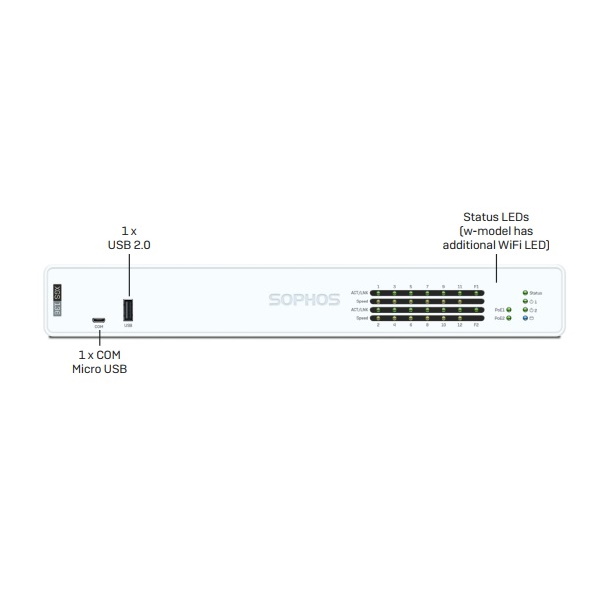

Physical interfaces
|
GE RJ45 Ports |
10 x GbE copper ; 2 x 2.5 GbE copper ; 2 x 2.5 GbE (PoE) |
|
GE SFP Slots |
2 x SFP fiber |
|
USB Port |
1 x Micro-USB (cable incl.) 1 x USB 2.0 (front) 1 x USB 3.0 (rear) |
|
Console Port |
1 x COM RJ45 |
|
Storage |
Integrated 64 GB SSD |
Dimensions & Enviroment
|
Mounting |
Rackmount kit available (to be ordered separately) |
|
Dimensions Height x Width x Length (mm) |
320 x 44 x 213 mm |
|
Weight |
2.4 kg/5.29 lbs (unpacked) 4.4 kg/9.70 lbs (packed) (w-model minimally higher) |
|
Power supply |
External auto-ranging AC-DC 100-240VAC, 2.5A@50-60 Hz 12VDC, 12.5A, 150W Optional second redundant power supply |
|
Power Consumption |
136: 30 W/102 BTU/hr (idle) 136w: 32 W/109 BTU/hr (idle) 136: 62 W/212 BTU/hr (max.) 136w: 65 W/222 BTU/hr (max.) |
|
Operating Temperature |
0°C to 40°C (operating) |
|
Storage Temperature |
-20°C to +70°C (storage) |
|
Humidity |
10% to 90%, non-condensing |
Wireless Specification (XG Wireless only)
|
No. of antennas |
3 external |
|
MIMO capabilities |
3 x 3:3 |
|
Wireless interface |
Wi-Fi 5/802.11a/b/g/n/ac (2.4 GHz / 5 GHz) |
Product Certifications
|
Certifications |
CB, CE, UL, FCC, ISED, VCCI, CCC, KC*, BSMI, NOM, Anatel* |
